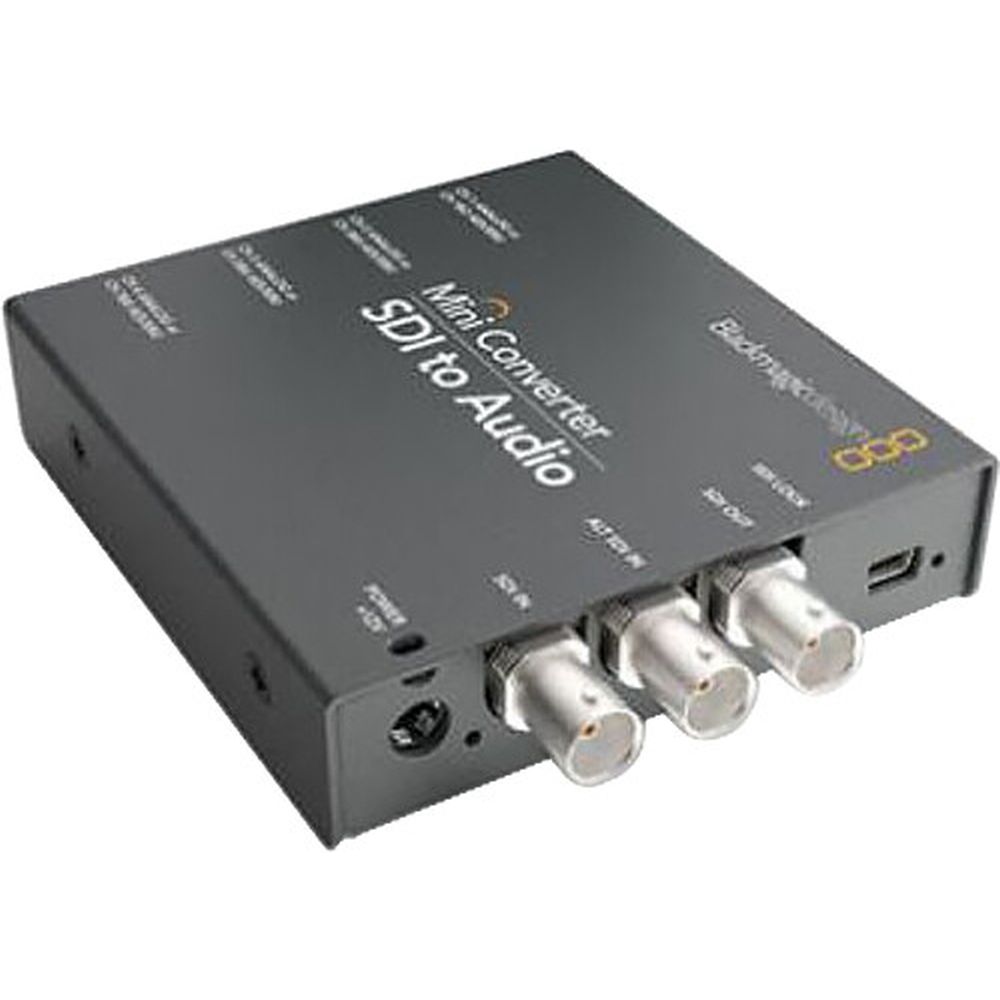

Blackmagic Mini Converter - SDI to Audio

Article number:

12192473

Blackmagic Mini Converter - SDI to Audio
Blackmagic Mini Converter - SDI to Audio
  • Blackmagic Mini Converter - SDI to Audio
€261,-
On order
Blackmagic Mini Converter - SDI to Audio
Blackmagic Mini Converter - SDI to Audio
€261,-

Get notified

    Free delivery on orders over €100

    Never overpay – a fair price every day
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period
The Blackmagic Mini Converter - SDI to Audio contains everything you need to de-embed 4 channels of analogue audio or 8 channels of AES/EBU digital audio from any SDI video connection.

Blackmagic Mini Converter - SDI to Audio

You now have easy access to the audio in any SDI video connection for output to audio equipment such as audio mixers, analogue broadcast decks, audio monitors and more! The mini converters switch seamlessly between standard definition and HD video formats, and switching is automatic when the video input changes.

A wide range of video standards is supported, including NTSC, PAL, 1080i/59.94, 1080i/50, 1080p/23.98, 1080p/24, 720p/59.94 and 720p/50 formats, and new formats can be added via USB.

Only Mini Converters feature the latest 3 Gb/s SDI technology. Upgrades can be loaded via the built-in USB port for compatibility with future video formats. 3 Gb/s SDI is also fully compatible with all your standard definition and high-definition SDI equipment.

Unlike other converters, a universal power supply is included with international plug adapters for all countries. This means you can take Mini Converters anywhere in the world and connect them directly to local power outlets. To prevent the power from being accidentally disconnected, a cable tie is included to secure the power connection firmly in place.

Information on the EU General Product Safety Regulation (GPSR)

Blackmagic Design

Runcorn WA7 1ST, Christleton Court 5-B, United Kingdom

Features of the Blackmagic Mini Converter - SDI to Audio

  • Automatic SD/HD switching
  • 3 Gb/s technology
  • Power supply included
  • SDI input: SDI: Switchable between SD, HD and 3 Gb/s SDI
  • SDI redundancy: Automatically switches over if the main SDI input fails
  • Analogue audio: 4 channels professional balanced analogue audio with standard 6.3 mm jack connectors
  • AES/EBU: 8 channels professional balanced digital audio with standard 6.3 mm jack connectors

In the Box

  • 1x Blackmagic Mini Converter - SDI to Audio
Connections & Connectivity
Inputs 1x SD/HD/3G-SDI
SDI input
SDI output
Dimensions & Weight
Length (mm) 114.83 mm
Weight (g) 215.0 g
Width (mm) 92.27 mm
Height (mm) 23.0 mm
Recording & Codecs
Max. resolution 1080p
Power
Mains
